SARENS
IN THE USA

Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.

Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Montana from where we cover the Midwest, and in Rowesville from where we cover the East coast.

SERVICES

We provide Engineered Heavy Lifting Services

Heavy Lifting

  • We provide Project-based heavy lift services
  • Turnaround maintenance
  • Installation of turbines & generators
  • Erection of steel structures
  • Erection of heat exchangers
  • Installation of mechanical equipment, drums, casing / inlet ducts, vessels, pumps

Heavy Transport Services

  • Out of Gauge and abnormal load transport
  • Project based heavy transport
  • Rental of specialized transport equipment
  • Factory-to-Foundation

Decomissioning and Dismantling Services

Rental Services

  • We provide bare lease as well as operated rentals services
  • Skidding & jacking

OUR
MARKETS

  • New nuclear plant construction
  • Operating nuclear plant
  • Small Modular Reactor (SMR)
  • Decommissioning
  • Department of Energy (DOE)
  • Government
  • Thermal power plants
  • Oil & Gas
  • Petrochemical
  • Major civil projects including:
    • Airports
    • Bridges
    • Stadia
    • Ports & yards
    • Oversized heavy haul

EQUIPMENT

  • Hydraulic cranes
  • Cranes ranging from 90T to 3200T
  • Hydraulic jacks
  • Strand jacks
  • Self Propelled Modular Trailers
  • Semi trailers
  • Out of Gauge transport

OFFICES

Houston, Texas (Office & Yard)
10855 John Ralston Rd
Houston, TX 77044
Tel: 832 536 3669
Fax: 832 615 2678

Missoula, Montana (Office)
7168 Expressway
Missoula, MT 59808
Tel: 406 543 4427

Rowesville, South Carolina (Office & Yard)
122 River Dr
Rowesville, SC 29133
Tel: 832 714 0176

Sorrento LA (Yard)
9204-A Highway 61
Sorrento, LA 70778
Tel: 225 450 7027

Sales
info.us@sarens.com

Accounts
ap.us@sarens.com

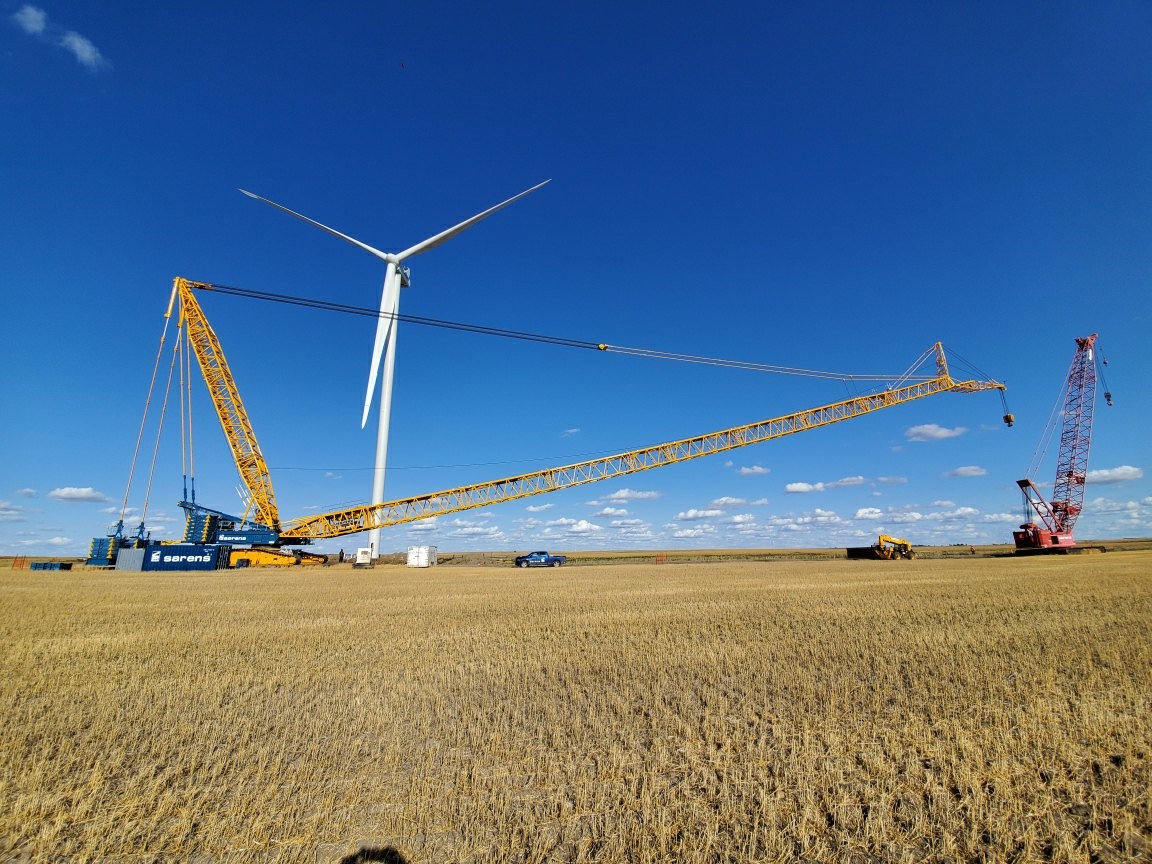

Whitla Wind Project In Alberta, Canada
Sarens Offloads and Installs Vestas V-136 Turbines for Important Renewable Project
2
March 2020

Sarens is proud to have been involved in the Whitla Wind Project in Alberta, installing several wind turbines on behalf of client Borea. This important renewable energy project has the potential to generate enough electricity to power nearly 70,000 Canadian homes each year. Completion of Phase 1 of the project is slated for 2019, when 56 Vestas V136 3.6MW wind turbines will go live.

For this operation, the Sarens crew offloaded all wind turbine components including the tower sections, nacelle, blades, and hubs. The hubs measured 105 metres, with 136-metre blade rotor diameters. The crew worked to ensure the proper placement of turbine components from offload so that the main cranes could lift them at the radius required.

To successfully lift and install the V-136 Vestas wind turbines, Sarens used two LR-1600 (SL4DB) cranes and a CC-2800 (SS/LSL + LF2 + SGL_57). The crane sizes were selected based on the scope of work, and the equipment was chosen for easy derigs and the best ground pressure for crawling from tower to tower.

The LR-1600 cranes came from Ontario and from Vancouver, while the CC-2800 was transported from Quebec. The cranes took two weeks to arrive on site and another five days per crane for assembly. The team quickly and efficiently assembled each of the cranes, staying mindful of the surrounding wetland areas and checking them prior to walking cranes into position.

During this operation, the heaviest lift executed was a 65-tonne nacelle that measured 108 metres with a 20-metre radius. Sarens would like to congratulate the crew for a successful and safe operation. Thank you to everyone who was involved in this project.
