Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.

Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Montana from where we cover the Midwest, and in Rowesville from where we cover the East coast.

SERVICES

We provide Engineered Heavy Lifting Services

Heavy Lifting

  • We provide Project-based heavy lift services
  • Turnaround maintenance
  • Installation of turbines & generators
  • Erection of steel structures
  • Erection of heat exchangers
  • Installation of mechanical equipment, drums, casing / inlet ducts, vessels, pumps

Heavy Transport Services

  • Out of Gauge and abnormal load transport
  • Project based heavy transport
  • Rental of specialized transport equipment
  • Factory-to-Foundation

Decomissioning and Dismantling Services

Rental Services

  • We provide bare lease as well as operated rentals services
  • Skidding & jacking

OUR
MARKETS

  • New nuclear plant construction
  • Operating nuclear plant
  • Small Modular Reactor (SMR)
  • Decommissioning
  • Department of Energy (DOE)
  • Government
  • Thermal power plants
  • Oil & Gas
  • Petrochemical
  • Major civil projects including:
    • Airports
    • Bridges
    • Stadia
    • Ports & yards
    • Oversized heavy haul

EQUIPMENT

  • Hydraulic cranes
  • Cranes ranging from 90T to 3200T
  • Hydraulic jacks
  • Strand jacks
  • Self Propelled Modular Trailers
  • Semi trailers
  • Out of Gauge transport

OFFICES

Houston, Texas (Office & Yard)
10855 John Ralston Rd
Houston, TX 77044
Tel: 832 536 3669
Fax: 832 615 2678

Missoula, Montana (Office)
7168 Expressway
Missoula, MT 59808
Tel: 406 543 4427

Rowesville, South Carolina (Office & Yard)
122 River Dr
Rowesville, SC 29133
Tel: 832 714 0176

Sorrento LA (Yard)
9204-A Highway 61
Sorrento, LA 70778
Tel: 225 450 7027

Sales
info.us@sarens.com

Accounts
ap.us@sarens.com

Jamaica Old Harbour Project
Internationally coordinated, fast tracked project leads to success.
20
November 2018

What happens when you bring together an engineering team from Mexico, sales teams from Europe and Latin America, and coordination between Sarens offices in North America and Belgium? A successful operation in Jamaica.

Sarens recently mobilised its global expertise to help client TSK install HRSG modules at a power plant in Jamaica. The 190MW combined cycle plant is being constructed for the Jamaica Public Service (JPS), and will be located in the fishing village of Old Harbour Bay, some 70km west of Kingston.

"This project had to be commercially concluded and executed in a very short time frame," says Dimitri Laurent, Sarens Regional Sales Manager, LATAM, of the fast-tracked project. He and the Sarens team responded to this challenge with flexibility, agility, and coordination between Sarens offices across the globe to meet TSK's requests.

"We quickly involved the engineering department from Mexico to work on the preliminary lifting studies and the sales teams from Europe and Latin America, with operations coordinated between North America and headquarters in Belgium in order to deliver quick commercial, technical and operational solutions," says Laurent. "International teamwork was the key to success."

Sarens received an RFQ in early December, sent an initial quote mid-month, and met with the client in January to finalise discussions. The team received a letter of intent on January 25th and mobilised equipment shortly afterwards.

During this process, Sarens engineers in Mexico had performed an engineering study and selected the appropriate cranes and configurations for the project. There was no availability of stools or transport beams on the island, and no time to produce them locally or regionally, which meant Sarens would have to act quickly to deliver the necessary equipment to the project site in Jamaica.

Just four days after the LOI was received, the client collected stools and beams from the Sarens yard in Europe. At around the same time, Sarens' Mexican business unit dispatched crawler cranes in order to meet the tight schedule.

The equipment included:

  • LR1400 in SDB configuration 63m
  • CKE2500 in main boom configuration 24.4m
  • 54 Stools and 31 transport beams for transport and storage of HRSG modules

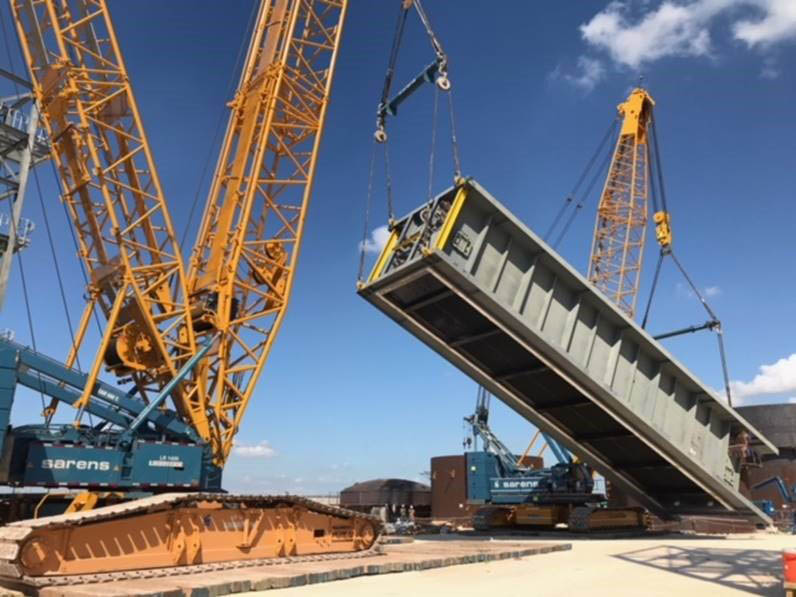

The operation, which began in March and will conclude this month, involves lifting HRSG modules that weigh approximately 200T each. A 10-person crew is lifting them at a 13m radius, with a hook height of 35m. In total, Sarens is performing 18 lifts at the project site.

Once the HRSG module installation is complete, cranes and support equipment (including stools and beams) will remain on the project site for two months, where they will be supporting construction of the stack.

We commend the Sarens team across the globe for coordinating on an international scale to meet the client's needs with agility, creativity, and excellence.

"Sarens showed top professionalism during the tender stage, clearly identifying our main needs in the project through a highly customised offer," says Francisco Berdasco Balbuena, Departamento de Compras, TSK. "It's worth mentioning their quick reaction time and pragmatism in coming to a mutual agreement in a timely and orderly manner."
