Our client, Besix-Orascom Joint Venture (BOJV), is responsible for building the new Grand Egyptian Museum in Cairo and as part of the project had to install two ancient solar boats in the new museum section.
The solar boat had to be lifted from the old Khufu Boat Museum, transported 10km to the new Grand Egyptian Museum, and installed in the new building. The solar boat was both archaeologically significant as well as fragile. Sarens, the reference for specialised transport globally, was asked by BOJV to work on the prestigious project.
The team had to address some challenges in the planning phase:
The client built a steel cage around the 43m long and 20T boat for protection making the total weight 100T. Sarens built a 52m long and 5.6m high steel bridge to allow the SPMTs to drive-in and park exactly underneath the boat.
The 12 axle-lines SPMT K24 lifted the boat from its support, drove it carefully outside through a narrow opening with only 20cm space on each side, and parked it on top of another 12 axle-lines SPMT K25 to ensure smooth movement of the load on slopes.

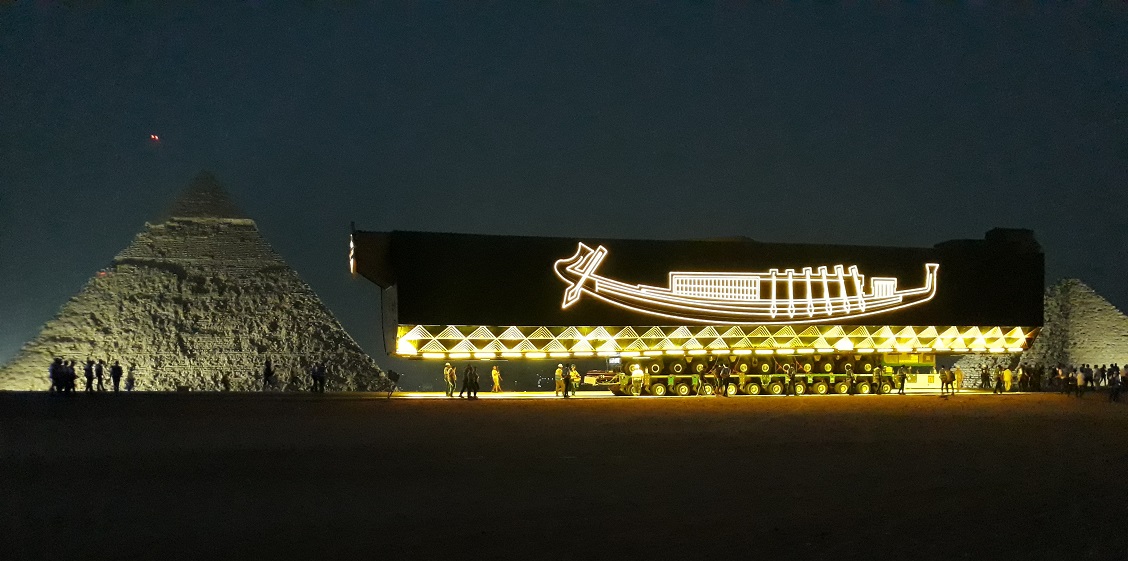

The boat was safely transported 10km to the new Grand Egyptian Museum. The next morning the CC4800 lifted the boat from the SPMTs and installed in the new Grand Egyptian Museum.
