Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.
Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Montana from where we cover the Midwest, and in Rowesville from where we cover the East coast.
We provide Engineered Heavy Lifting Services
Heavy Transport Services
Decomissioning and Dismantling Services
Houston, Texas (Office & Yard)
10855 John Ralston Rd
Houston, TX 77044
Tel: 832 536 3669
Fax: 832 615 2678
Missoula, Montana (Office)
Missoula, MT 59808
Tel: 406 543 4427
Rowesville, South Carolina (Office & Yard)
122 River Dr
Rowesville, SC 29133
Tel: 832 714 0176
Sorrento LA (Yard)
9204-A Highway 61
Sorrento, LA 70778
Tel: 225 450 7027
In September 2016, Sarens carried out the load-out and installation of the world's largest cutter ladder. Today, exactly after completing one year of the noteworthy project, we bring to you how were the operations undertaken by our skilled team in this video.

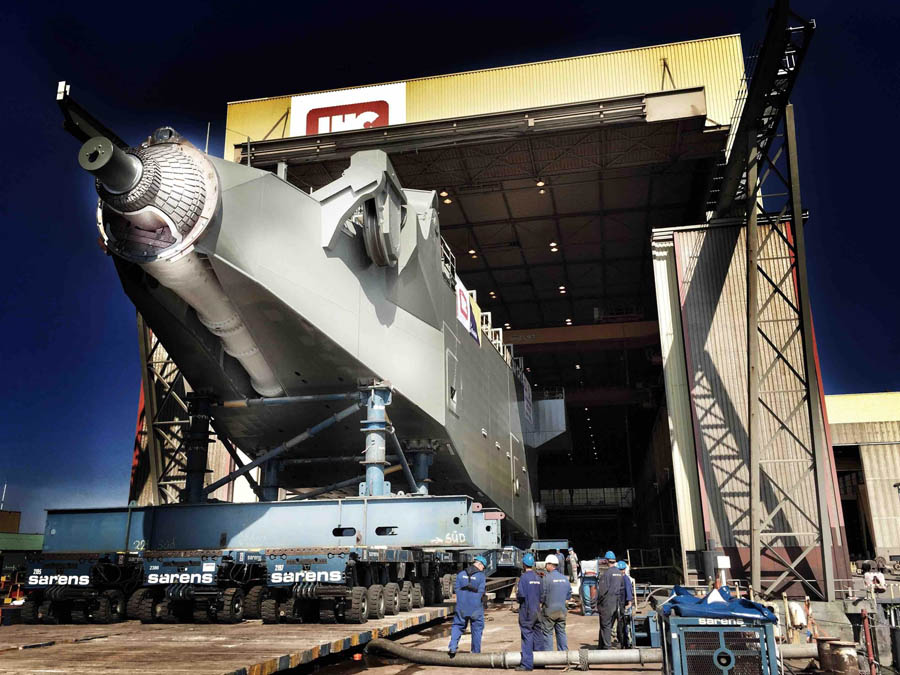

Sarens was contracted by Royal IHC to carry out the load-out and water transport of the world's largest cutter ladder at Sliedrecht in the Netherlands. The sections were transported from Sliedrecht to Kinderdijk. The cutter ladder is part of the Royal Boskalis Westminster's new self-propelled mega cutter dredger Helios. Along with that Sarens was required to perform:
The huge cutter ladder weighed 1717t having a dimension of 55 x 8.6 x 11.2m, whereas the spud carrier weighed 350t and measured 27.5 x 8 x 8.3m
The location of the construction yard from where the cutter ladder was transported, was at a slipway of 3˚. Our engineering and operations team analysed the challenge and accordingly planned the transport. The bridge just in front of the yard was narrow and to cross it safely the maximum barge width was finalised at 29m. A tidal load-out was carried out. The barge height was raised by a track of 40cm on top of the barge to allow smooth load-out and transport. The entire operation took place in a well-controlled and organised manner. Willem Ditmer, project manager, says, " The biggest challenge was to overarch the gap between the two stools of the customer at a height of 3.5m on a slipway of 3˚. Our fifteen member crew efficiently handled the task and successfully performed the load-out of one of the world's largest cutter ladder."
To carry out the entire operation Sarens team deployed:
The Helios was finally competed and handed over to the end client, Boskalis, in June 2017.
