SARENS
IN THE USA

Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.

Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Wisconsin from where we cover the Midwest, and in Rowesville from where we cover the East coast.

SERVICES

We provide Engineered Heavy Lifting Services

Heavy Lifting

  • We provide Project-based heavy lift services
  • Turnaround maintenance
  • Installation of turbines & generators
  • Erection of steel structures
  • Erection of heat exchangers
  • Installation of mechanical equipment, drums, casing / inlet ducts, vessels, pumps

Heavy Transport Services

  • Out of Gauge and abnormal load transport
  • Project based heavy transport
  • Rental of specialized transport equipment
  • Factory-to-Foundation

Decomissioning and Dismantling Services

Rental Services

  • We provide bare lease as well as operated rentals services
  • Skidding & jacking

OUR
MARKETS

  • New nuclear plant construction
  • Operating nuclear plant
  • Small Modular Reactor (SMR)
  • Decommissioning
  • Department of Energy (DOE)
  • Government
  • Thermal power plants
  • Oil & Gas
  • Petrochemical
  • Major civil projects including:
    • Airports
    • Bridges
    • Stadia
    • Ports & yards
    • Oversized heavy haul

EQUIPMENT

  • Hydraulic cranes
  • Cranes ranging from 90T to 3200T
  • Hydraulic jacks
  • Strand jacks
  • Self Propelled Modular Trailers
  • Semi trailers
  • Out of Gauge transport

OFFICES

Sarens USA
10855 John Ralston Rd
Houston, Texas 77044
+ 1 832 536 3669
+ 1 832 615 2678
info.us@sarens.com

Sarens USA
9204-A Highway 61
Sorrento, Louisiana 70778
+ 1 225 450 7027info.us@sarens.com

Sarens Nuclear & Industrial Services
122 River Drive
Rowesville, South Carolina 29133
+ 1 803 534 1348
+ 1 803 535 6093
nuclear@sarens.com

Sarens Nuclear & Industrial Services
1430 South Goodland Road
Hartford, WI 53027
+ 1 414 299 0858
nuclear@sarens.com

Sarens Removes Gantry Cranes in The UK
Sarens works in Teesport, The UK to dismantle two gantry cranes
14
June 2022

PD ports contracted CL Prosser who asked Sarens to remove two redundant overhead gantry cranes within a warehouse in Teesport, The UK.

The challenge was to remove the gantries without modifying the warehouse structure and allowing site operations to continue at the opposite end of the warehouse. The overhead gantry cranes had to be lifted from elevated rails 15m above ground level and placed on ground to allow the demolition.

Our crew decided to use the following equipment:

  • 20 x K24 SPMT Axles
  • 2 x PPUs
  • 4 x Sarlift Gantry Towers complete with 10m long lifting beam (250T capacity per tower)
  • 1 x 400T Mobile Crane
  • 1 x 500T Mobile Crane
  • 100T Capacity Mobile Crane
  • BS220 Bracing Steelwork
  • S273 Spreader Beam + Tackle
  • MEWP and Telehandler

The two gantry cranes weighed 122T each and measured 30.7x12x7.8m.

Sarens engineers worked out a customised solution for the client. The trolley and the cab was positioned on the overhead gantry crane as per Sarens’ specifications and parked in their pick-up position.

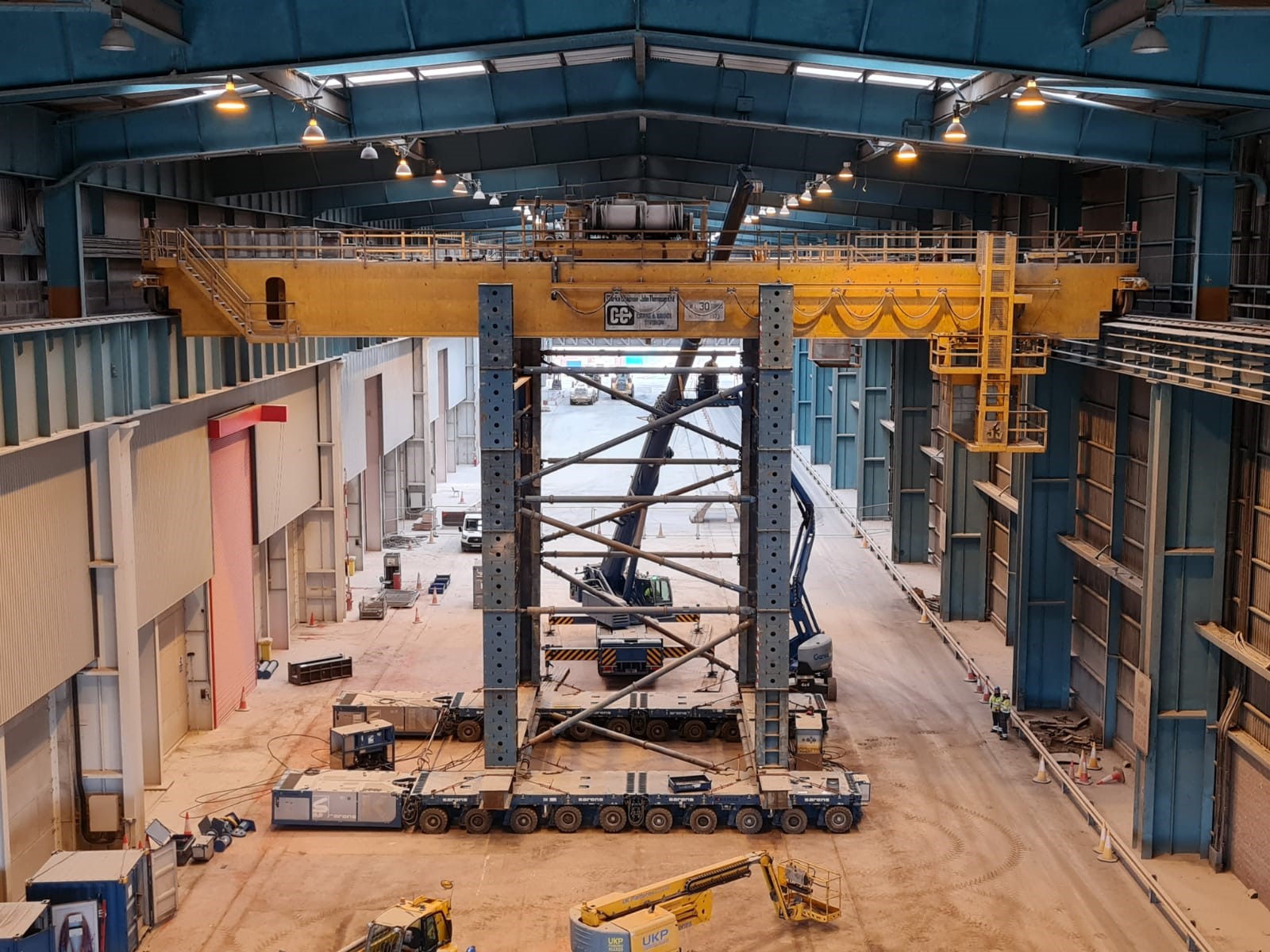

A 100T mobile crane assembled the SPMTs and Sarlift gantry within the warehouse adjacent to the overhead gantry crane before driving it into position. The overhead gantry crane was lifted 800mm using the Sarlift Gantry until the underside of the girders were above the rails. The SPMTs were then used in carousel mode to rotate the overhead gentry so that it could pass between the rails and lowered. Once lowered the crane was tandem lifted onto the ground using a 400T and 500T mobile crane.

The customised solution by Sarens provided considerable cost savings and ensured that the operation was completed safely:

Cost reduction was achieved due to:

  • No requirement to remove roof sections from warehouse.
  • No strengthening work required as supports were provided to the Overhead Gantry Crane.
  • Minimal disruption to port operations.

Safety achieved by:

  • Avoiding working at a height.
  • Reduction in project man hours.
  • Work undertaken within warehouse so reduced exposure to the elements.
