Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.

Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Montana from where we cover the Midwest, and in Rowesville from where we cover the East coast.

SERVICES

We provide Engineered Heavy Lifting Services

Heavy Lifting

  • We provide Project-based heavy lift services
  • Turnaround maintenance
  • Installation of turbines & generators
  • Erection of steel structures
  • Erection of heat exchangers
  • Installation of mechanical equipment, drums, casing / inlet ducts, vessels, pumps

Heavy Transport Services

  • Out of Gauge and abnormal load transport
  • Project based heavy transport
  • Rental of specialized transport equipment
  • Factory-to-Foundation

Decomissioning and Dismantling Services

Rental Services

  • We provide bare lease as well as operated rentals services
  • Skidding & jacking

OUR
MARKETS

  • New nuclear plant construction
  • Operating nuclear plant
  • Small Modular Reactor (SMR)
  • Decommissioning
  • Department of Energy (DOE)
  • Government
  • Thermal power plants
  • Oil & Gas
  • Petrochemical
  • Major civil projects including:
    • Airports
    • Bridges
    • Stadia
    • Ports & yards
    • Oversized heavy haul

EQUIPMENT

  • Hydraulic cranes
  • Cranes ranging from 90T to 3200T
  • Hydraulic jacks
  • Strand jacks
  • Self Propelled Modular Trailers
  • Semi trailers
  • Out of Gauge transport

OFFICES

Houston, Texas (Office & Yard)
10855 John Ralston Rd
Houston, TX 77044
Tel: 832 536 3669
Fax: 832 615 2678

Missoula, Montana (Office)
7168 Expressway
Missoula, MT 59808
Tel: 406 543 4427
Fax: 406 543 4505
Conf Rm: 406 532 3093

Rowesville, South Carolina (Office & Yard)
122 River Dr
Rowesville, SC 29133
Tel: 803 534 1348

Sorrento LA (Yard)
9204-A Highway 61
Sorrento, LA 70778

Sales
info.USA@sarens.com

Accounts
SarensUS.AP@sarens.com

Sarens Installs 1.465T Tunnel Boring Machine at Algiers Subway Station
Sarens CC2400-1 SSL helps with extension work on the Algiers Subway
11
March 2020

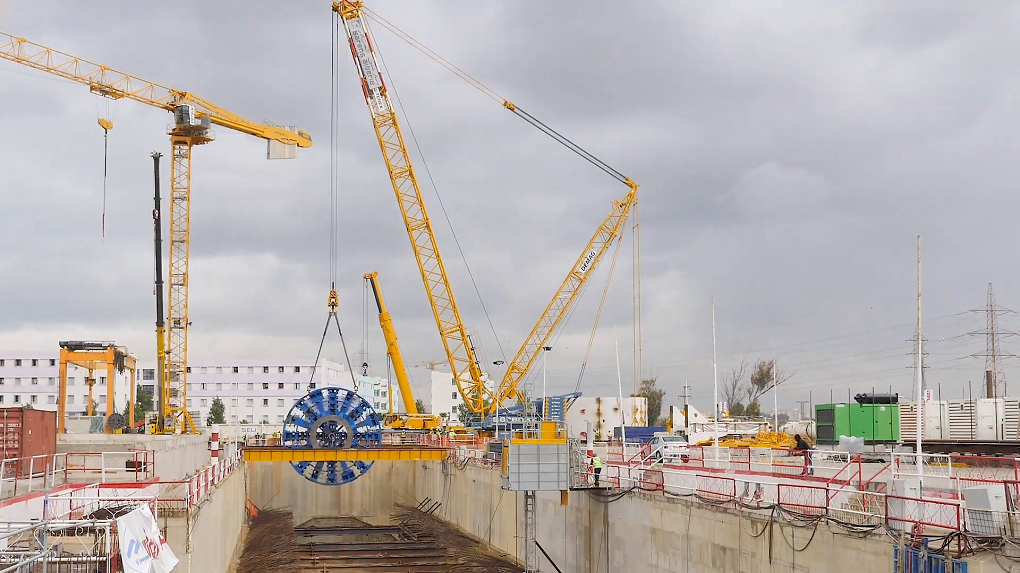

Sarens was proud to collaborate with client Cosider Travaux Publics on the extension of the Algiers Subway in Oued Smar, a well-trafficked site in the center of Algiers. As part of this operation, Sarens was responsible for installing a 1.465-tonnes tunnel boring machine at a 30-metre depth. Once assembled, the machine measured 104 meters long with a 10-metre diameter.

This was a complex project with many variables: to prepare, the local Sarens engineering department conducted a study to determine the best way to install up to 17 individual components of the machine at an exact depth. Each of the components had different dimensions and weights, the most important of which was the cutter head, which weighed 215 tonnes.

Sarens determined that the CC2400-1 SSL crane, with a 48m main boom and 220T superlift, would be ideal for the job. An important consideration was the significant weight of the 215-tonne cutter head that would need to be lifted at a 19-metre radius.

The CC2400-1 crane was transported to the site directly from another project in the city of Hassi Messaoud, 900km south of Algiers. It took the crew three days to set up the equipment, which then remained on site from July 31, 2019 through November 9, 2019.

Sarens commends the engineering department and the expert crew involved in this operation.

“Proud to contribute to the development of Algiers city” said Sarens Engineering Manager Yassine Amrouche. “This tunneling machine is equipped with the latest technologies. It will make it possible to excavate between 16 and 24 meters per day and accelerate the extension works of the Algiers metro. Thanks to our client, Cosider, for continuing to place their loyalty, trust and confidence, in us. We remain attentive to strengthen our collaboration and become their partner for any future manipulation of this tunneling machine.”

Thank you to the on-site crew, which included one project engineer, one lifting supervisor, one crane operator, and two riggers.

Watch the video here!
