Sarens entered US Heavy lift and heavy haul space in 2009 by acquiring Rigging International, a company based in California. We officialy changed the name to Sarens USA, INC. in 2012.

Sarens USA, INC has offices in Houston from where we cover the Gulf area, in Montana from where we cover the Midwest, and in Rowesville from where we cover the East coast.

SERVICES

We provide Engineered Heavy Lifting Services

Heavy Lifting

  • We provide Project-based heavy lift services
  • Turnaround maintenance
  • Installation of turbines & generators
  • Erection of steel structures
  • Erection of heat exchangers
  • Installation of mechanical equipment, drums, casing / inlet ducts, vessels, pumps

Heavy Transport Services

  • Out of Gauge and abnormal load transport
  • Project based heavy transport
  • Rental of specialized transport equipment
  • Factory-to-Foundation

Decomissioning and Dismantling Services

Rental Services

  • We provide bare lease as well as operated rentals services
  • Skidding & jacking

OUR
MARKETS

  • New nuclear plant construction
  • Operating nuclear plant
  • Small Modular Reactor (SMR)
  • Decommissioning
  • Department of Energy (DOE)
  • Government
  • Thermal power plants
  • Oil & Gas
  • Petrochemical
  • Major civil projects including:
    • Airports
    • Bridges
    • Stadia
    • Ports & yards
    • Oversized heavy haul

EQUIPMENT

  • Hydraulic cranes
  • Cranes ranging from 90T to 3200T
  • Hydraulic jacks
  • Strand jacks
  • Self Propelled Modular Trailers
  • Semi trailers
  • Out of Gauge transport

OFFICES

Houston, Texas (Office & Yard)
10855 John Ralston Rd
Houston, TX 77044
Tel: 832 536 3669
Fax: 832 615 2678

Missoula, Montana (Office)
7168 Expressway
Missoula, MT 59808
Tel: 406 543 4427

Rowesville, South Carolina (Office & Yard)
122 River Dr
Rowesville, SC 29133
Tel: 832 714 0176

Sorrento LA (Yard)
9204-A Highway 61
Sorrento, LA 70778
Tel: 225 450 7027

Sales
info.us@sarens.com

Accounts
ap.us@sarens.com

Sarens Deploys Innovative Crane Solution at German Wind Farm
PC 3800-1 used to erect turbines at Renkenberge Wind Farm
21
July 2018

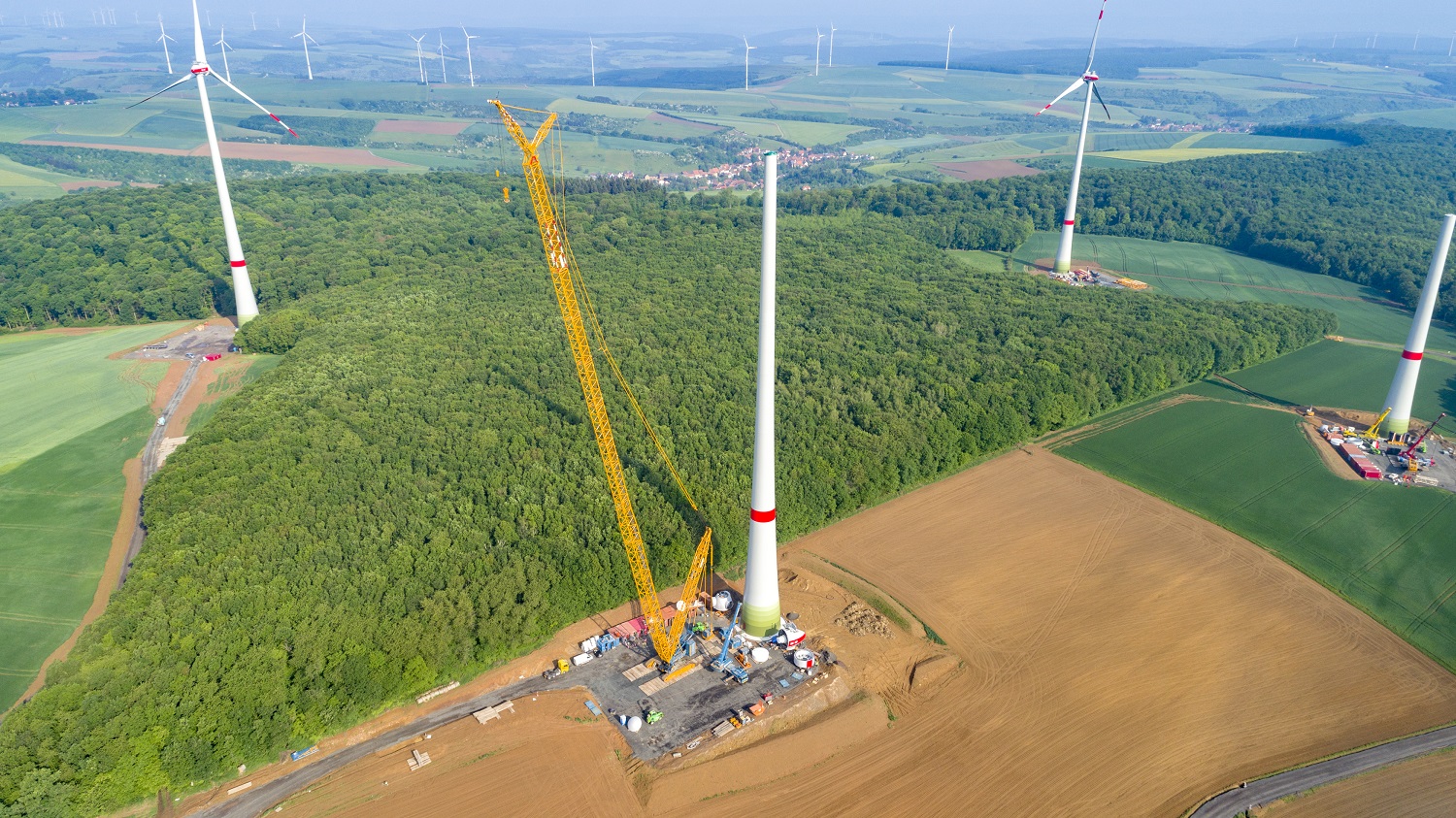

Sarens has completed a lift operation at the Renkenberge wind farm on behalf of client Enercon DE. It involved the erection of three 159m  high wind turbines as well as a smaller 99-metre turbine. Several different pieces of equipment were used, but the star of the show was the Demag PC 3800-1 pedestal crane.

The PC 3800-1 is the pedestal version of the 650T capacity CC 3800-1 lattice boom crawler crane. It was developed by Terex-Demag in close cooperation with Sarens, and boasts several advantages in wind farm operations, including:

  • Improved crane capacity, especially on main boom.
  • Need for less extensive ground preparation since it can level itself on outriggers.
  • Lower ground loading due to the 12m x 12m outrigger base on superlift. Larger outrigger bases (14m x 14m and 16m x 16m) are possible on main boom combinations.
  • Lower transport costs, since no heavy transport is needed except for the crane body itself.
  • Faster on-site relocation possible with outriggers folded along the crane body and 60t of crane counterweight installed.
  • Availability of 6 axle self-propelled trailer, at no additional cost. The hydraulic transport modules connected to the crane pot for road transport can be disconnected once the crane body is placed on outriggers and then used on site as a self-propelled trailer.

Other equipment used on site during the installation of the 93T turbine parts included the LTM 1250 K4149, Merlo P38-12, and PC 3800 LSL-LF 14 (165m + 12m).

Because the PC 3800-1 is a pedestal crane, it cannot crawl after rigging. This means that the rigging location requires a study that all work can be done from one position. However, Hendrik Sanders, the technical solutions equipment engineer for Sarens, explains an innovative solution:

"In Renkenberge, the first ever relocation of a PC 3800-1 was performed in partially rigged mode. Once the crane body was put on its outriggers at the crane platform, the 6 axle self-propelled trailer was used to transport the fully rigged 42m superlift mast, which had been put on timber stillages at the former location. This made it possible to perform the crane relocation in 8 hours' less time, compared to a full dismantling and rigging."

"The flexibility of the crane operator, Michel Butterhuis, and the coordinator was very good!" said site manager Congar Vahdettin, who praised Sarens' level of service as well as its crane solutions. The Group is proud to have been a part of this project, and to have served the client with the highest level of excellence and care. Sarens thanks everyone who was a part of this project's success!
